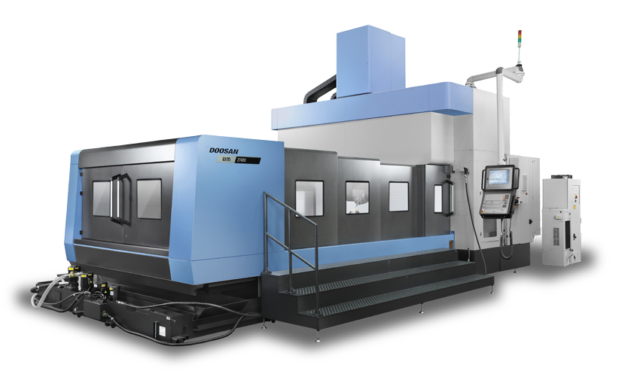

Doosan BM 2740U large double-column 5-axis machining centres
The BM 2740U large-capacity double-column machine, equipped with its rigid structure, universal 2-axis head and linear scales, provides manufacturers with fast, accurate and full 5-axis simultaneous machining capability.
Technical Specifications
| Travels: X, Y, Z: | 4000mm x 2500mm x 700mm |
| B- and C-axes: | +/-110 and +/-220 degrees |
| Rapid rates (X, Y, Z): | 12, 16, 16m/min |
| Spindle: | 40kW/18,000rpm (HSK -A63) |
| Table: | 4000mm x 2500mm |
| Max table load: | 10,000kg |
| ATC: | 60 tools (each) |
| Control: | Heidenhain iTNC640 |
