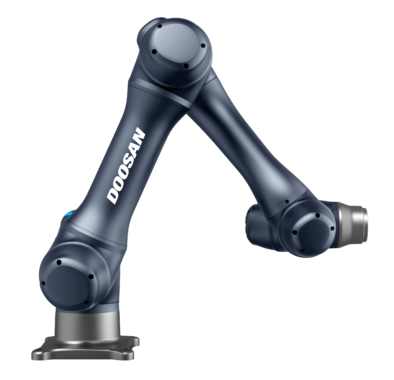

A-series cobots
A0509/A0509s cobots have a 5kg payload capacity and a 900mm reach. The ‘s’ model features force sensor technology.
The A-series provides best-in-class industry speeds and affordability. All cobots meet the highest safety standards set by international testing and training organisation, TUV SUD. The cobots are incredibly versatile making them ideal for a range of applications such as polishing, assembly as well as machine tending, pick and place, inspection, gluing and bonding, air blowing and packaging etc.
Technical Specifications
| Arm | |
| Payload capacity: | 5kg |
| Reach radius: | 0.9m |
| Speed: | 1m/s |
| Repeatability: | +/-0.03mm |
| No of Axes: | 6 |
| Noise rating: | <65dB |
| Protection rating: | IP54 |
| Robot weight: | 21kg |
| Controller | |
| Size: | 450 x 210 x 265mm |
| Interface: | Ethernet (TCP/IP)/RS232/USB/GP10/Wi-Fi |
| Weight: | 12kg |
| Cable length (Arm/Pendant): | 6.0m/4.5m |
| Pendant | |
| Size: | 264 x 218 x 42mm |
| Weight/screen size: | 0.8kg/10.1 inch |
Not what you're looking for?
A0912/A0912s cobots have a 9kg payload capacity and a 1200mm reach. The ’s’ model features force sensor technology. The A-series provides best-in-class industry ... View A0912/A0912s
Other Doosan cobot series to consider.
M-series cobotsM-series cobots are versatile, safe, easy to use and install, and are competitively-priced. Since their introduction in the UK in 2019 they have been the number one choice for manufacturers working in and across a range of sectors. M-series cobots have a payload capacity up to 15kg and a reach up to 1700mm (model dependant).
Find out moreH-series cobots
The new H-series models offer a 1.7m reach and up to 25kg payload (the heaviest payload capacity currently available on the market). The two models in the series weigh only 75kg and are equipped with six torque sensors on their (six) axes making them ideal for a range of applications where flexibility and dexterity are critical.
Find out more
