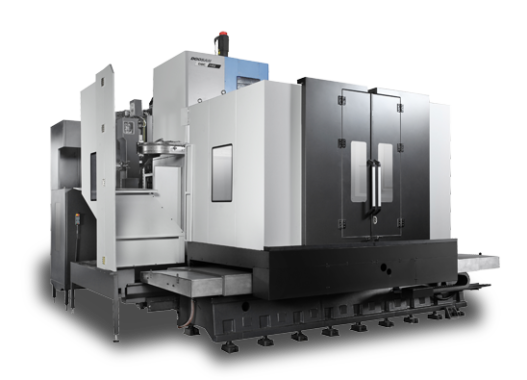

Doosan DBC 110 Horizontal Boring Machines
Doosan’s high-performance, high-productivity range of DBC 110 Horizontal Boring Machines is without equal. The machines have a rigid construction for long life accuracy, and are equipped with high-speed, heavy-duty spindles for optimum cutting performance.
The machines are used extensively in the oil/gas, automotive, nuclear and power generation sectors and for large mould tool and die applications.
The box guide-way DBC 110 machines have a high-torque, powerful spindle (26kW, 4,000rpm) for heavy-duty cutting, and a large table (1,400 x 1,800mm) to handle large and heavy-work-pieces.
Technical Specifications
| Capacity (X-, Y-, Z-axis): | up to 2500mm x 2000mm x 1500mm |
| W-axis: | 110/550mm |
| Spindle power/speed: | up to 26kW/4,000rpm |
| Table size: | up to 1400mm x 1800mm |
| Tool changer: | 40/60/90 position |
| Slideways: | Box |
| Control: | Fanuc/Heidenhain |
