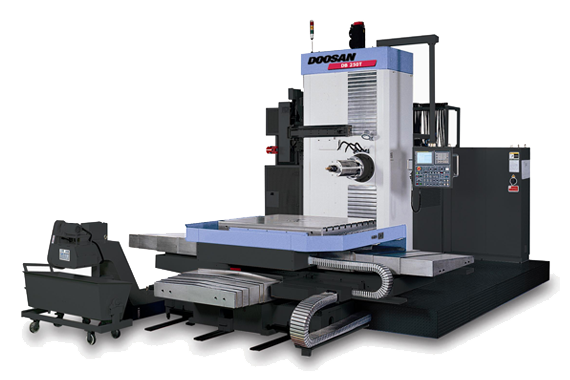

Doosan DBC 250 Horizontal Boring Machines
Doosan’s high-performance, high-productivity range of DBC 250 Horizontal Boring Machines feature a built-in quill spindle and are without equal. The machines have a rigid construction for long life accuracy.
The machines are used extensively in the oil/gas, automotive, nuclear and power generation sectors and for large mould tool and die applications.
The box guide-way DBC 250 machines have a high-torque, powerful spindle (26kW/30kW – 6000rpm) for heavy-duty cutting, and a large table (1,600 x 1,800mm) to handle large and heavy-work-pieces.
Technical Specifications
| Capacity (X-, Y-, Z-axis): | up to 4000mm x 2500mm x 2000mm |
| W-axis: | 250/500mm |
| Spindle power/speed: | up to 26kW/30kW - 6000rpm |
| Table size: | up to 1600mm x 1800mm |
| Tool changer: | 40/60/90 position |
| Slideways: | Box |
| Control: | Fanuc/Heidenhain |
