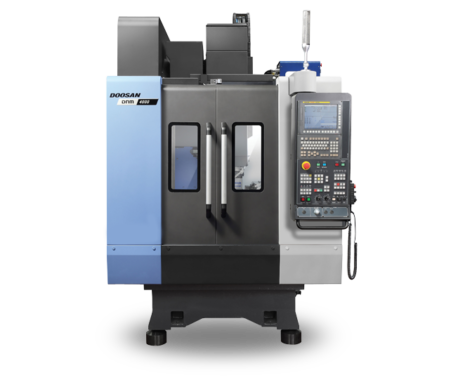

Doosan DNM 4000
The new compact Doosan DNM 4000 vertical machining centre is versatile, productive, easy to use and delivers outstanding machining performance.
Technical Specifications
| Travels: | 520mm x 400mm x 480mm |
| Table: | 650mm x 400mm |
| Rapid rates: | 48m/min all axes |
| Slideways: | Roller LM guides |
| Table load: | 400kg |
| Spindle power/speed: | 18.5kW/12,000 rpm direct-drive |
| Tool changer: | 20-position (side-arm) |
| Tooling/spindle configuration: | BT40/Big Plus |
| Lubrication: | Grease lubrication system |
| Control: | Doosan Fanuc 0iMF (10.4” screen); Siemens 828D |
