Doosan Machine Tools

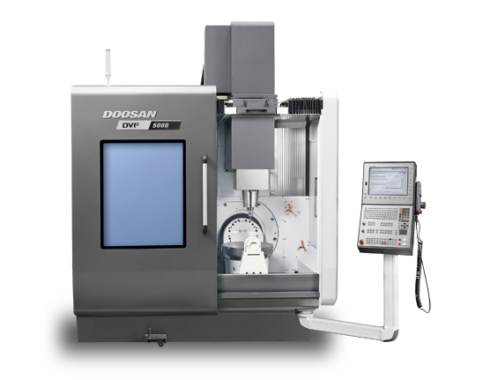

Doosan DVF 5000

The DVF 5000 is a rigidly-built 5-axis machine that provides manufacturers with full simultaneous 5-axis machining capability.

The DVF 5000 is available with either a Fanuc, Heidenhain or Siemens control.

Technical Specifications

Capacity (X, Y, Z axes): 625mm x 450mm x 400mm
Rotary tilting table (B- and C axes): -30+110; 360 degrees
Rapid rates (X, Y and Z): 40m/min
Table size: 500mm x 400mm
Max table load: 400kg
Spindle power/speed: Up to 22kW/18,000rpm
Tool changer: Up to 120 position
Control: Fanuc, Heidenhain or Siemens
