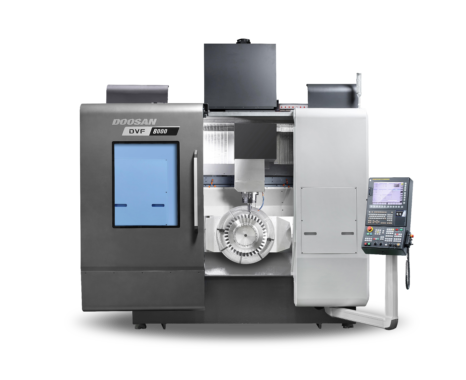

Doosan DVF 8000
The DVF 8000 is a rigidly-built 5-axis machine that provides manufacturers with full simultaneous 5-axis machining capability.
The DVF 8000 is available with either a Fanuc, Heidenhain or Siemens control.
Technical Specifications
| Capacity (X, Y, Z axes): | 1000mm x 900mm x 685mm |
| Rotary tilting table (B- and C axes): | -30+110; 360 degrees |
| Rapid rates (X, Y and Z): | 45m/min |
| Table size: | 800mm x 680mm |
| Max table load: | 1,400kg |
| Spindle: | BT40 |
| Spindle power/speed: | Up to 22kW/18,000rpm |
| Tool changer: | Up to 120 position |
| Control: | Fanuc, Heidenhain or Siemens |
| * DVF 8000T turn capability: | 600rpm |
