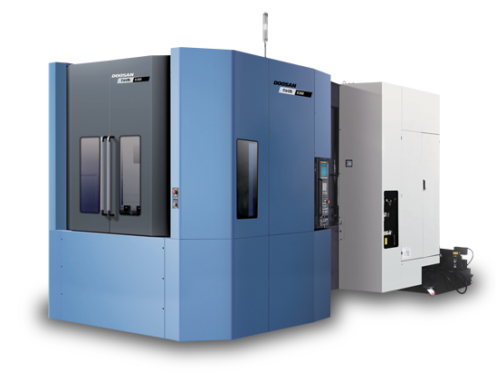

Doosan Heavy-Duty Horizontal Machining Centres: NHM Range
Doosan’s range of heavy-duty Horizontal machines is tough, reliable and ready to tackle even the most difficult of applications.
NHM machines have a box-guide-way design and feature powerful spindles (50 Taper) for challenging machining operations, large tool magazines and automatic pallet changers (x 2 tables) for increased productivity and flexibility.
There are 3 different sized models in the range – the NHM 5000, NHM 6300 and NHM 8000.
Technical Specifications
| Capacity (X-, Y-, Z-axis): | up to 1400mm x 1050mm x 1200mm |
| Spindle power/speed: | up to 35kW/8,000rpm |
| Table size: | up to 800mm x 800mm (twin pallet configuration) |
| Tool changer: | up to 376 tools |
| Tooling: | BT 50 Big Plus Type |
| Slideways: | Box |
| Control: | Fanuc 31i |
