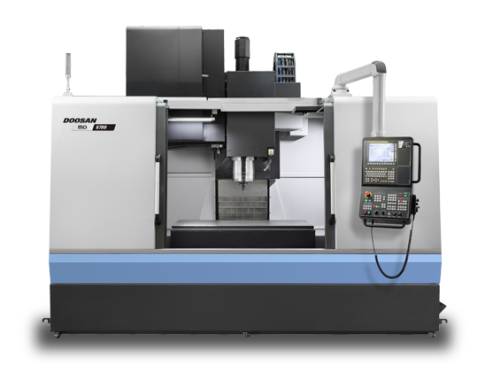

Doosan MD 6700 Mould & Die Machining Centres
The MD 6700 is a high-precision, high-productivity machining centre designed for the mould tool and die sector.
The machines in the range are equipped with either a built-in or gear-driven spindle, and feature thermal compensation and cooling systems for increased accuracy and reliability.
Technical Specifications
| Travels X-, Y- ,Z-axes: | 1300mm x 670mm x 670mm |
| Rapid traverse: | 24m/min |
| Spindle/Tooling interface: | BT 50 |
| Table size: | 1500mm x 670mm |
| Table load: | 2000kg |
| Spindle power/speed: | 30kW/12,000rpm |
| ATC: | 24 tools (servo-driven); 30 tool option |
| Control: | Doosan Fanuc 31i |
