Doosan’s range of large-capacity Mynx vertical machining centres
Doosan’s Mynx-series of vertical machining centres is designed for heavy duty machining applications, and for machining tough and hard-to-machine materials.
The machines have a box-guide-way design, and feature powerful spindles, large working envelopes and generous-size tool changers.

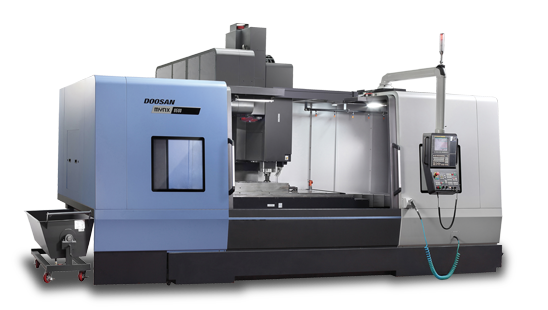

There are four different sized models in the range – Mynx 5400, Mynx 6500, Mynx 7500 and the new Mynx 9500.
The machines are available with either a BT 40 or BT 50 spindle/tooling configuration.
Technical Specifications
| Mynx 5400 capacity: | |
| Travels: | 1020mm x 540mm x 530mm |
| Table: | 1200mm x 540mm |
| Mynx 6500 capacity: | |
| Travels: | 1270mm x 670mm x 625mm |
| Table: | 1400mm x 670mm |
| Mynx 7500 capacity: | |
| Travels: | 1525mm x 762mm x 625mm |
| Table: | 1600mm x 750mm |
| Mynx 9500 capacity: | |
| Travels: | 2500mm x 950mm x 850mm |
| Table: | 2500mm x 950mm |
| Spindle power/speed range: | 15kW/6,000rpm - 26kW/12,000rpm |
| Tool changer: | 24/30/40 position |
| Slideways: | Box |
| Tooling: | BT 40/ BT 50 Big Plus type |
| Control: | Fanuc or Siemens |
