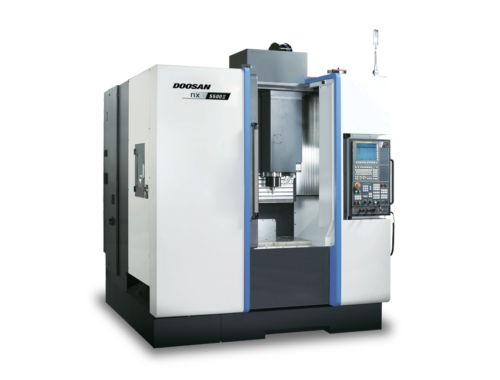

NX 5500/6500 II high-speed vertical machining centres
Doosan NX II series vertical machining centres are aimed at the mould tool and die making sector. The machines have a bridge structure and are equipped with high-speed spindles, roller-type linear guideways and a proven thermal management system to ensure high accuracy machining.
Technical Specifications
| Travels X-, Y- ,Z-axes: | Up to 1050mm x 650mm x 550mm |
| Rapid rates: | 30m/min |
| Spindle: | 22kW/20,000rpm (40,000rpm option) |
| Taper: | BT 40/HSK |
| ATC: | 30 tools |
| Table: | Up to 1200mm x 650mm |
| Table load: | Up to 800kg |
| Control: | Fanuc 31i/ Heidenhain (option) |
