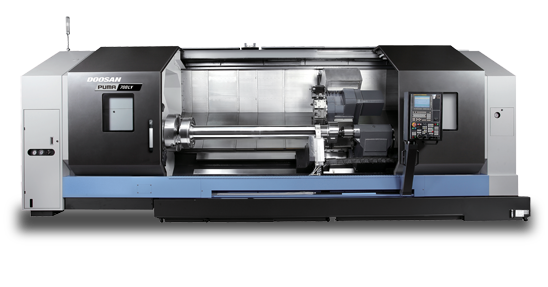

Doosan Puma 700 lathe series
Puma 700 lathes are popular amongst component manufacturers looking for a powerful and reliable turning solution.
These lathes have a large chucking capability (24” chuck standard) and bar work capacity (164mm bar diameter), and have been designed to machine large and heavy work-pieces.
Puma 700 machines are used extensively in the power generation, oil and gas and large automotive sectors, and deliver outstanding part accuracies, surface finishes and process reliability.
Puma 700 lathes with long beds (up to 5 metres), driven tools (11kW/3000rpm) and Y-axes (+/- 100mm) are all available.
Technical Specifications
| Chuck size: | 24” standard |
| Bar capacity: | 164mm |
| Maximum swing: | 1030mm/1140mm |
| Maximum turning diameter: | 900mm |
| Maximum turning length: | 5050mm |
| Spindle (power and speed): | 45kW/1500rpm |
| Milling spindle (model dependent): | 11kW/3000rpm |
| Y-axis (model dependant): | 200mm (+/-100mm) |
| Turret: | 12 position |
| Control: | Fanuc 32i |
