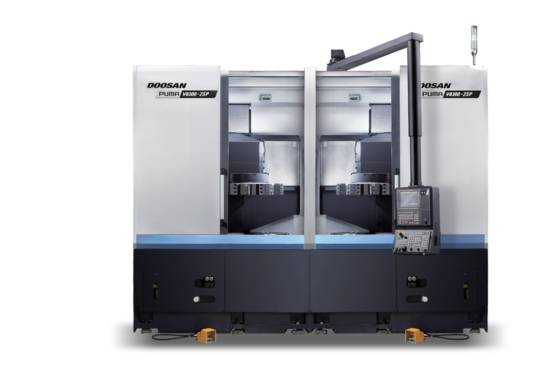

Doosan Puma V8300 vertical turret lathes
Doosan’s Puma vertical turning lathes are designed for their long-term accuracy and heavy-duty cutting capabilities. They have a rigid box guide-way design and build, and are equipped with gearbox driven technology for fast and responsive machining.
V8300 vertical turning lathes have a maximum turning diameter of 830mm and a 750mm maximum turning length.
The V8300M models have driven tools (23kW/4000rpm). Twin spindle models (SP) also available.
Technical Specifications
| Chuck size: | 15” |
| Travel X- and Z-axis: | 495mm; 780mm |
| Maximum turning length: | 750mm |
| Maximum turning diameter: | 830mm |
| Rapid rates: | 20m/min |
| Main Spindle (power and speed): | 37kW/2000rpm |
| Driven tools (model dependent): | 23kW/4000rpm |
| Turret: | 12 position (servo driven) |
| Control: | Fanuc/Siemens |
