Doosan Machine Tools

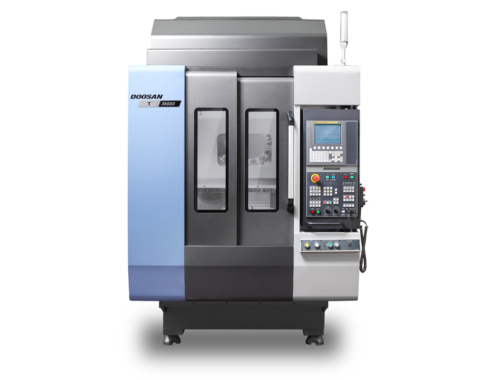

Doosan T 3600D tapping centre

The T3600D is a compact high-productivity tapping centre with twin pallets, a direct-coupled spindle and a servo-driven ATC.

Technical Specifications

Travels X, Y, Z: 520mm x 360mm x 350mm
Rapid rates: up to 56m/min
Pallet size: 2 x 650mm x 375mm
Max pallet load: 2 x 200kg
Pallet change time: 2.9 seconds
Spindle: 13kW/12,000rpm (24,000rpm option)
ATC: Up to 21 tools
Control: Doosan Fanuc i
