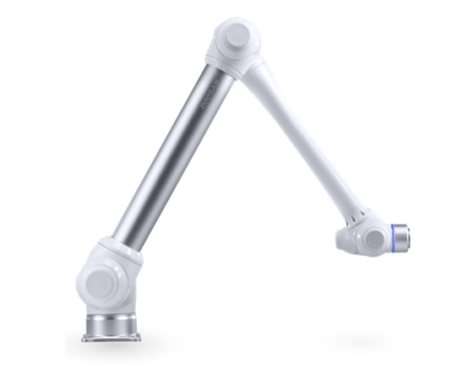

M0617 collaborative robot
Doosan Robotics’ collaborative robots are versatile, safe, easy-to-use and install, and competitively-priced. The cobot range won the prestigious REDDOT award for product design in 2017 and 2018.
The M0617 has a 6kg payload capacity and the industry’s largest reach radius at 1.7metres.
The cobot has a 6-axis articulated arm with highly-sensitive torque sensors that detect any change in force or pressure that cause it to stop.
The cobot is supplied with a state-of-the-art controller and teaching pendant, and can be installed on the floor, ceiling or wall.
Technical Specifications
| Arm | |
| Payload capacity | 6kg |
| Reach radius | 1.7m |
| Speed | 1m/s |
| Repeatability | +/-0.1mm |
| No of Axes | 6 |
| Noise rating | <65dB |
| Protection rating | IP54 |
| Robot weight | 34kg |
| Controller | |
| Controller Size | 490 x 390 x 287mm |
| Interface | Ethernet (TCP/IP)/RS232/USB/GP10/Wi-Fi |
| Weight | 9kg |
| Cable length (Arm/Pendant) | 6.0m/4.5m |
| Pendant | |
| Size | 264 x 218 x 42mm |
| Weight/screen size | 0.8kg/10.1 inch |
